What is the Difference Between Air and Water Chiller?
- Share
- Issue Time
- Jun 2,2025
Summary
Discover the key differences between air-cooled chillers and water-cooled chillers, including efficiency, cost, and applications. Learn which chiller system is best for your HVAC project.
Introduction
Chillers are an essential component of modern HVAC systems, especially in large commercial and industrial projects. They work by removing heat from a liquid, which is then used to cool air or equipment. Among the most widely used options are air-cooled chillers and water-cooled chillers. While they perform the same basic function, the two systems differ in design, efficiency, cost, and applications. Understanding these differences will help businesses and engineers make the right choice for their projects.

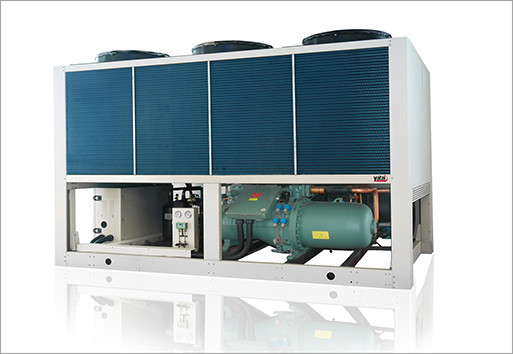

What is an Air-Cooled Chiller?
An air-cooled chiller relies on ambient air to remove heat from the refrigerant. Fans blow air across condenser coils, making the process simple and direct.
Advantages:
✅Easier installation (no cooling tower needed)
✅Lower initial investment compared to water chillers
✅Compact design, suitable for rooftops or limited spaces
✅Requires less maintenance
Disadvantages:
⚠️Less energy-efficient, especially in hot climates
⚠️Performance highly dependent on outdoor temperature
⚠️Higher noise levels due to fans
What is a Water-Cooled Chiller?
A water-cooled chiller uses water from a cooling tower to absorb and reject heat, offering a more energy-efficient but complex solution.
Advantages:
✅High energy efficiency, particularly in large-scale projects
✅Stable performance regardless of outdoor conditions
✅Quieter operation compared to air chillers
✅Longer lifespan when maintained properly
Disadvantages:
⚠️Higher upfront cost
⚠️Requires additional infrastructure (cooling tower, pumps, water treatment system)
⚠️Maintenance is more complex and frequent
Key Differences Between Air and Water Chillers
| Feature | Air-Cooled Chiller | Water-Cooled Chiller |
| Cooling Method | Uses ambient air and fans | Uses water + cooling tower |
| Installation Cost | Lower | Higher |
| Energy Efficiency | Moderate | High |
Maintenance | Simple and less frequent | Complex, requires regular checks |
Space Requirement | Compact, rooftop-friendly | Needs cooling tower & plant room |
Best Applications | Small/medium projects, rooftops | Large commercial & industrial systems |
How It Works？
The use of air or water to effectively cool hot spots combined with overall temperature provides the means to optimise the watts or power consumption. The capability to create and operate using air or water as a medium to cool the surroundings depends on the function performed by the condensers. The water-based chiller sucks in water while the air based chiller sucks in air. A water-cooled condenser uses the water coil to transfer heat from condenser coils while the air basedvariant has a smaller impact on the environment has a condenser that is cooled by air.
Applications
Air-Cooled Chillers: Best for small to medium-sized buildings, data centers, temporary cooling needs, and rooftop installations.
Water-Cooled Chillers: Common in large commercial complexes, hospitals, high-rise buildings, factories, and shopping malls that demand high efficiency and continuous operation.
Conclusion
Both air chillers and water chillers serve critical roles in HVAC cooling systems, but the choice depends on your project’s scale, budget, and performance requirements.
If your project has limited space and budget, an air-cooled chiller is often the better choice.
If your project requires long-term efficiency, quieter operation, and stability, then a water-cooled chiller is the right investment.
