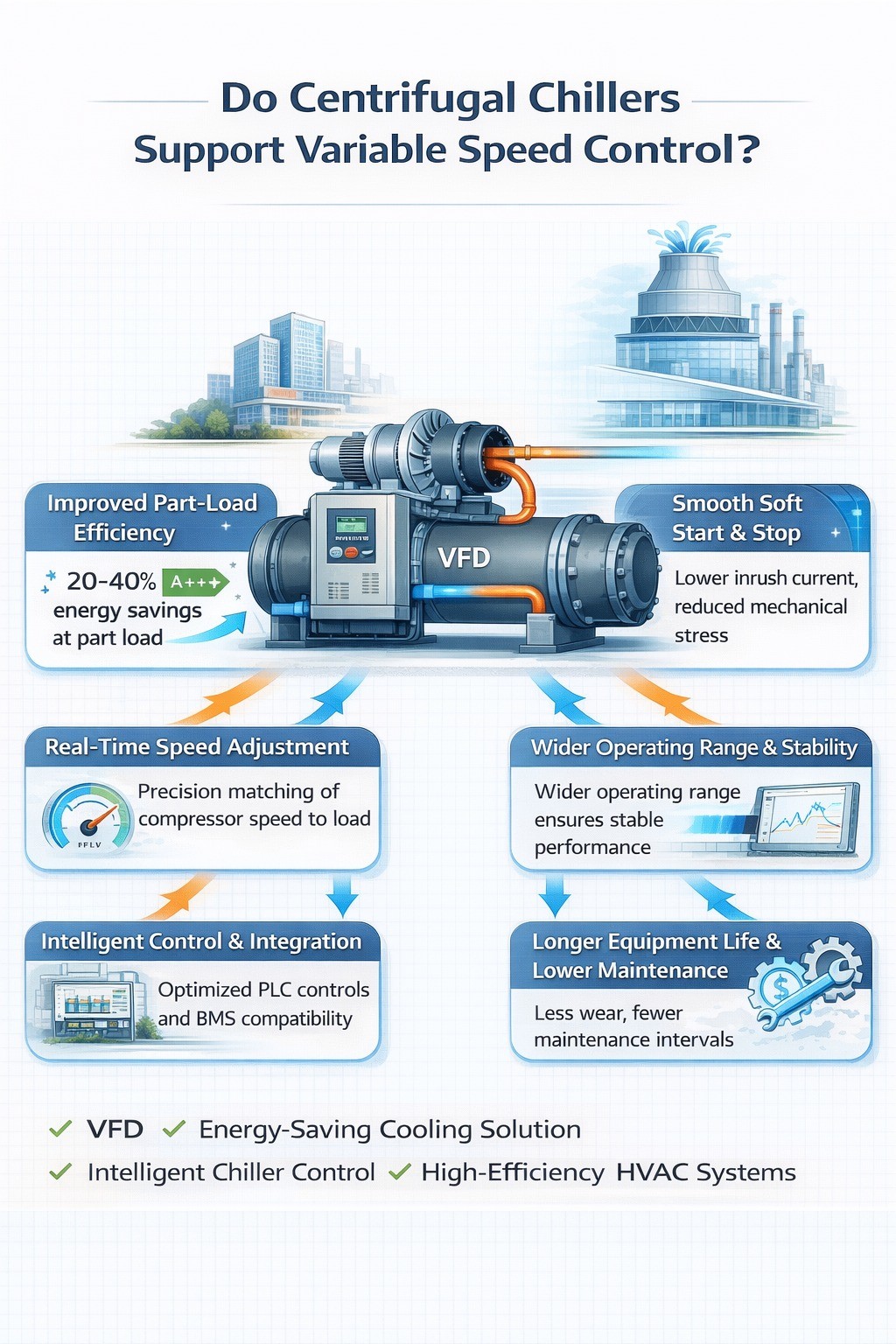

Do centrifugal chillers support variable speed control?

At the heart of variable speed control is the Variable Frequency Drive (VFD), which adjusts the rotational speed of the centrifugal compressor motor in real time. Unlike traditional fixed-speed chillers that rely on inlet guide vanes (IGVs) or on/off cycling to regulate capacity, variable speed centrifugal chillers continuously match cooling output to actual building demand. This results in significantly reduced energy consumption, smoother operation, and improved system reliability.

In an Aurashu centrifugal chiller system, the VFD precisely controls motor frequency and voltage. As cooling demand decreases, the compressor speed is reduced rather than throttling refrigerant flow. Because centrifugal compressors follow affinity laws, even small reductions in speed can lead to substantial energy savings. Power consumption decreases roughly with the cube of speed, making variable speed control especially effective at part-load conditions—where chillers typically operate for most of the year.

Aurashu integrates intelligent control algorithms that continuously monitor chilled water temperature, cooling load, condenser water conditions, and ambient parameters. The system dynamically adjusts compressor speed to maintain optimal efficiency while ensuring stable operation and avoiding surge or stall conditions.

Variable speed centrifugal chillers deliver exceptional part-load efficiency, which is reflected in significantly higher IPLV (Integrated Part Load Value) and seasonal efficiency metrics. While full-load efficiency is important, real-world HVAC systems operate at partial loads for over 70–80% of annual operating hours. Aurashu variable speed centrifugal chillers are optimized to achieve maximum efficiency precisely under these conditions.

Compared to fixed-speed units, variable speed centrifugal chillers can reduce annual energy consumption by 20–40%, depending on system design and operating profile. This directly translates into lower electricity bills, reduced carbon emissions, and compliance with increasingly strict energy efficiency regulations and green building standards.

Variable speed control also enhances system stability. Instead of frequent starts and stops or aggressive mechanical modulation, the compressor operates smoothly across a wide speed range. This minimizes temperature fluctuations in the chilled water loop, providing more stable indoor comfort for occupants in large commercial buildings such as offices, hotels, hospitals, and data centers.

For Aurashu systems, smoother operation also reduces mechanical stress on bearings, impellers, and motors. This contributes to longer service life, lower maintenance requirements, and higher overall system reliability.

Aurashu centrifugal chillers with variable speed control are fully compatible with modern Building Management Systems (BMS). Using protocols such as BACnet or Modbus, the chiller can communicate load data, operating status, alarms, and energy performance metrics. This allows facility managers to optimize chiller staging, coordinate multiple units, and implement advanced energy management strategies.

In multi-chiller plants, variable speed control enables intelligent load sharing. Instead of running one chiller at full capacity and cycling others on and off, the system distributes load efficiently across multiple units, maximizing overall plant efficiency.

Some users worry that VFDs add complexity. However, Aurashu designs its variable speed centrifugal chillers using industrial-grade drives, advanced cooling systems, and robust electrical protection. This ensures reliable performance even in demanding environments such as industrial plants or high-capacity district cooling systems.

In addition, soft starting enabled by variable speed drives significantly reduces inrush current and mechanical shock during startup. This protects electrical infrastructure and extends compressor and motor lifespan.

Variable speed centrifugal chillers are particularly suitable for:

Large commercial complexes

Airports and transportation hubs

Hospitals and medical centers

Data centers with variable IT loads

Industrial process cooling

District cooling plants

High-performance green buildings

Aurashu customizes variable speed solutions based on project size, climate conditions, load profiles, and efficiency targets, ensuring optimal performance for each application.
