Combined Commercial Air Conditioning Unit | Energy-Efficient Central Air Conditioning Solution
Item specifics
- Air Volume
- 3000 ~ 250000 m³/h
- Filtration
- Optional G4, F7, H13
- Frame
- High-strength aluminum alloy
- Panel
- Double-layer insulated steel panel
Review
Description

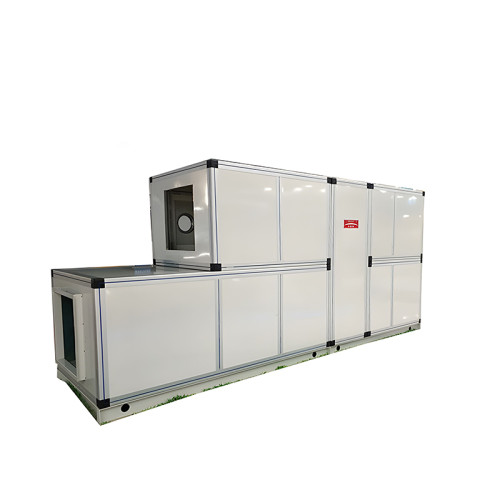

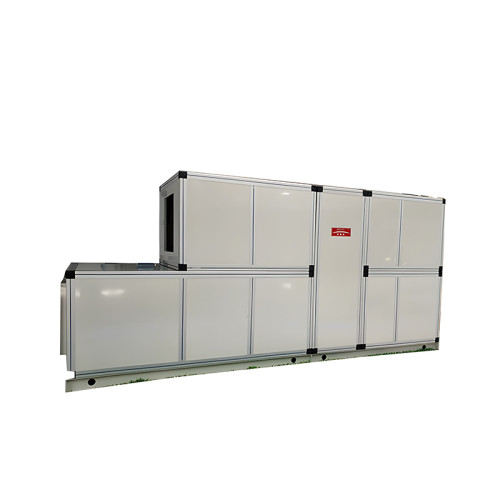

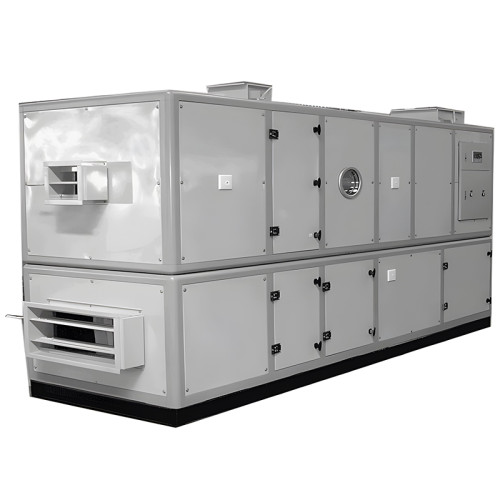

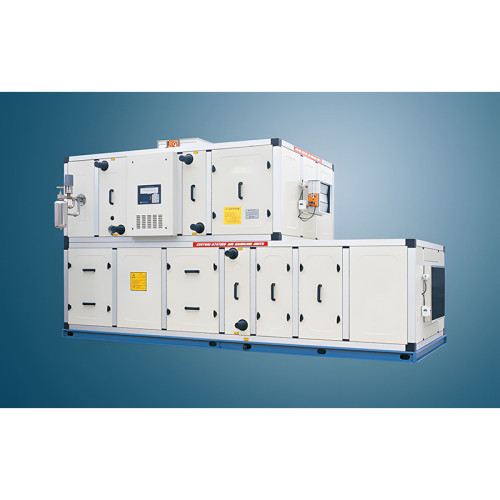

Product Overview – Combined Commercial Air Conditioning Unit
The Modular Air Handling Unit (AHU) is a central air conditioning system designed with customizable functional sections to meet diverse application needs. It integrates air supply, return, cooling, heating, humidification, dehumidification, and air purification in one unit.
The casing is made of high-strength aluminum alloy frames with double-layer insulated steel panels, offering excellent thermal insulation, corrosion resistance, and airtightness. It can be equipped with pre-filters, medium filters, and HEPA filters to meet various air quality standards, from comfort cooling to cleanroom environments.
With a wide airflow range (2,000–150,000 m³/h) and customizable cooling/heating capacities, it adapts to different climates and operational conditions. Equipped with low-noise centrifugal fans and intelligent control systems, it provides precise temperature and humidity regulation with energy-efficient performance.
Why Choose Our Combined Commercial Air Conditioning Unit
Highly Customizable: Functional sections can be configured based on air quality, temperature/humidity, and noise requirements.
Premium Materials: Aluminum alloy frame + insulated steel panels for corrosion resistance, thermal break prevention, and excellent sealing.
Modular Flexible Design: Supports multiple units in parallel to meet varying capacity needs.
Precise Temp & Humidity Control: Suitable for both comfort and industrial applications.
Multi-Stage Filtration：Optional pre-, medium-, and HEPA filters to meet cleanroom standards.
Frequently Asked Questions (FAQ)
Q1: Are the unit size and airflow customizable?
A:Yes, we can tailor the size, airflow, cooling capacity, and other parameters to your building and air treatment needs.
Q2:Do you provide installation and commissioning services?
A: We offer global installation guidance and commissioning services, and can dispatch technical teams for on-site support.
Q3: Can the filtration system be upgraded?
A: Yes, it can be upgraded to higher-grade filters such as HEPA or activated carbon according to project needs.
